How to Deploy Korifi v0.14.0 on Single-Node K3s with Ubuntu Raspberry Pi 5 (Step-by-Step)

Published Updated 6-minute read
Featured image

Bill of Materials for the Raspberry Pi Cluster Link to heading

  • (1) Raspberry Pi 5 (8gb)
  • (1) SanDisk 128gb
  • (1) USB-C, right-angle, “HotNow” brand cables
  • (1) 1-foot CAT6 flat ethernet cables
  • (1) Ubiquiti Flex Mini switch
  • (1) Anker Prime Charger, 200W, 6-port GaN charging station
  • (1) Raspberry Pi 5 case

That’s everything. I power the switch and the device from the same charging station.

Better Power Link to heading

I’ve upgraded the charging station since the last blog.

This time, I’m providing better power to the device, in hopes we can boot from USB.

When I boot the previous cluster, that didn’t have proper power, I saw this error:

This power supply is not capable of supplying 5A; power to peripherals
will be restricted

See man:pemmican-cli(1) for information on suppressing this warning,
or https://rptl.io/rpi5-power-supply-info for more information on the
Raspberry Pi 5 power supply

I came across this command to verify the power:

vcgencmd get_throttled

throttled=0x0

This means there is no throttling

throttled=5000x0

This (or anything else) means the device not getting proper power

Interesting thing here, is that previous cluster and current cluster both show the error at login. Both clusters also return throttled=0x0 from the vgencmd command. The important difference is that with the new power, I can boot via USB.

I would still like be in a spot where I don’t see that warning. I will continue to report on my progress with that.

Installing Ubuntu 24.10 on Raspberry Pi Devices Link to heading

I install Ubuntu Server 24.10, using Raspberry Pi Imager.

Edit the settings:

  • Configure the hostname
  • Set country
  • Add user (dashaun)
  • Enable SSH server on boot
  • Add public key for SSH auth

Update to the latest Link to heading

# On each Raspberry Pi
sudo apt update
sudo apt upgrade -y
sudo shutdown -r now

Smooth sailing from here

Setting Up K3s with K3sup on Raspberry Pi Link to heading

From my laptop, not from the Raspberry Pi device.

k3sup install --ip 10.0.0.30 --user dashaun --k3s-extra-args '--disable traefik' --merge --local-path ~/.kube/config --context pikorifi

The –user is the same user that I configured with public key for ssh via Raspbery Pi Imager above. I add --k3s-extra-args '--disable traefik' because Korifi provides Contour for ingress. I --merge into my local ~/.kube/config so I can use kubectl/kubectx. I named this cluster context pikorifi but you can choose whatever you like.

After a few seconds, you have a single-node cluster of k3s.

Let’s take a look at our cluster now!

kubectx pikorifi

Switched to context “pikorifi”.

kubectl get nodes -o wide

NAME          STATUS   ROLES                  AGE    VERSION        INTERNAL-IP   EXTERNAL-IP   OS-IMAGE       KERNEL-VERSION      CONTAINER-RUNTIME
pikorifi00    Ready    control-plane,master   33m    v1.31.4+k3s1   10.0.0.30     <none>        Ubuntu 24.10   6.11.0-1006-raspi   containerd://1.7.23-k3s2

single-node k3s Kubernetes cluster

Installing and Configuring Korifi on Kubernetes Link to heading

I configured my properties with a .envrc file for direnv

export ROOT_NAMESPACE="cf"
export KORIFI_NAMESPACE="korifi"
export ADMIN_USERNAME="cf-admin"
export BASE_DOMAIN="pikorifi00.korifi.cc"
export GATEWAY_CLASS_NAME="contour"
export DOCKERHUB_USERNAME="dashaun"
export DOCKERHUB_PASSWORD="*******"

Install Cert-Manager Link to heading

kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.16.3/cert-manager.yaml

New release! 2025-01-16

Install Kpack Link to heading

kubectl apply -f https://github.com/buildpacks-community/kpack/releases/download/v0.16.1/release-0.16.1.yaml

New release! 2025-01-16

Make Kpack run on ARM64 Link to heading

Kpack doesn’t deliver ARM64 images yet. My modernized binfmt-daemonset.yaml below makes it work!

I changed from busybox:stable to arm64v8/alpine for the smaller image.

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: binfmt
  labels:
    app: binfmt-setup
spec:
  selector:
    matchLabels:
      name: binfmt
  template:
    metadata:
      labels:
        name: binfmt
    spec:
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      initContainers:
        - name: binfmt
          image: tonistiigi/binfmt
          args: ["--install", "all"]
          securityContext:
            privileged: true
      containers:
        - name: pause
          image: arm64v8/alpine
          command: ["sleep","infinity"]
          resources:
            requests:
              memory: "1Mi"
              cpu: "1m"

kubectl apply -f ./binfmt-daemonset.yaml

It took about 1-minute for kpack status to become Running after applying.

Install Contour Link to heading

kubectl apply -f https://raw.githubusercontent.com/projectcontour/contour/release-1.30/examples/render/contour-gateway-provisioner.yaml
kubectl apply -f - <<EOF
kind: GatewayClass
apiVersion: gateway.networking.k8s.io/v1beta1
metadata:
  name: $GATEWAY_CLASS_NAME
spec:
  controllerName: projectcontour.io/gateway-controller
EOF

Dynamic provisioning

Metrics Server Link to heading

The Kubernetes Metrics Server got installed with k3s so we are moving along.

Install Service Bindings Controller Link to heading

kubectl apply -f https://github.com/servicebinding/runtime/releases/download/v1.0.0/servicebinding-runtime-v1.0.0.yaml

Create namespaces: Link to heading

cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Namespace
metadata:
  name: $ROOT_NAMESPACE
  labels:
    pod-security.kubernetes.io/audit: restricted
    pod-security.kubernetes.io/enforce: restricted
EOF

cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Namespace
metadata:
  name: $KORIFI_NAMESPACE
  labels:
    pod-security.kubernetes.io/audit: restricted
    pod-security.kubernetes.io/enforce: restricted
EOF

Add container registry credentials: Link to heading

kubectl --namespace "$ROOT_NAMESPACE" create secret docker-registry image-registry-credentials \
    --docker-username="$DOCKERHUB_USERNAME" \
    --docker-password="$DOCKERHUB_PASSWORD"

I’m using DockerHub

I’m still cool with self-signed certificates for now.

Install Korifi with Helm Link to heading

helm install korifi https://github.com/cloudfoundry/korifi/releases/download/v0.14.0/korifi-0.14.0.tgz \
    --namespace="$KORIFI_NAMESPACE" \
    --set=generateIngressCertificates=true \
    --set=rootNamespace="$ROOT_NAMESPACE" \
    --set=adminUserName="$ADMIN_USERNAME" \
    --set=api.apiServer.url="api.$BASE_DOMAIN" \
    --set=defaultAppDomainName="apps.$BASE_DOMAIN" \
    --set=containerRepositoryPrefix=index.docker.io/dashaun/ \
    --set=kpackImageBuilder.builderRepository=index.docker.io/dashaun/kpack-builder \
    --set=networking.gatewayClass=$GATEWAY_CLASS_NAME \
    --wait

These are my values, update containerRepositoryPrefix and kpackImageBuilder.builderRepository with your values.

Post-Install Config Link to heading

I’m running locally, not public.

kubectl get service envoy-korifi -n korifi-gateway -ojsonpath='{.status.loadBalancer.ingress[0]}'

{"ip":"10.0.0.30","ipMode":"VIP"}

I added that IP address to my /etc/hosts for api.pikorifi00.korifi.cc

127.0.0.1       localhost
255.255.255.255 broadcasthost
::1             localhost
10.0.0.30       api.pikorifi00.korifi.cc

cf api https://api.$BASE_DOMAIN --skip-ssl-validation

Setting API endpoint to https://api.pikorifi00.korifi.cc...
OK

API endpoint:   https://api.pikorifi00.korifi.cc
API version:    3.117.0+cf-k8s

Not logged in. Use 'cf login' or 'cf login --sso' to log in.

So far, so good!

cf login

I’m presented with a list of all of the users in my ~/.kube/config and I choose the entry in the list associated to $ADMIN_USERNAME

API endpoint: https://api.pikorifi00.korifi.cc

1. korifi-v0-12
2. k3d-thunder
3. bootiful
4. concourse
5. cf-admin
6. clusterhat00
7. coffeesoftware
8. javagruntjr
9. kind-bcn
10. korifi-sandbox
11. tanzuplatform
12. mgmt
13. nucs
14. chaos-engr
15. redis-enterprise

Choose your Kubernetes authentication info (enter to skip): 5

Authenticating...
OK

API endpoint:   https://api.pikorifi00.korifi.cc
API version:    3.117.0+cf-k8s
user:           cf-admin
No org or space targeted, use 'cf target -o ORG -s SPACE'

This is working!

cf create-org pikorifi-cc
cf create-space -o pikorifi-cc production
cf target -o pikorifi-cc -s production

API endpoint:   https://api.pikorifi00.korifi.cc
API version:    3.117.0+cf-k8s
user:           cf-admin
org:            pikorifi-cc
space:          production

Generate a UI with Vaadin Link to heading

I created a simple website using Vaadin.

git clone https://github.com/pikorifi-cc/cc.pikorifi.www
cd cc.pikorifi.www
./mvnw spring-boot:build-image -Pproduction \
-Dspring-boot.build-image.imagePlatform=linux/arm64 \
-Dspring-boot.build-image.imageName=dashaun/cc.pikorifi.www:latest
docker push dashaun/cc.pikorifi.www:latest

Build native ARM64 image locally and push to registry

Production Link to heading

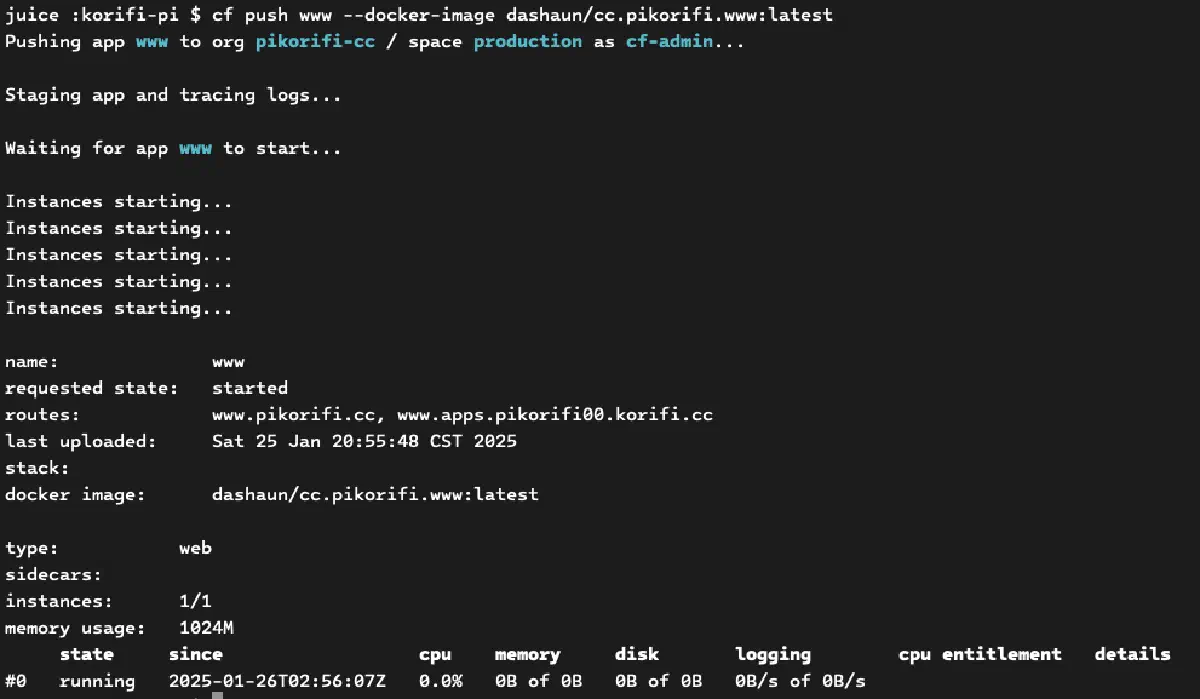

cf push www --docker-image dashaun/cc.pikorifi.www:latest

Pushing app www to org pikorifi-cc / space production as cf-admin...

Staging app and tracing logs...

Waiting for app www to start...

Instances starting...
Instances starting...
Instances starting...
Instances starting...
Instances starting...

name:              www
requested state:   started
routes:            www.pikorifi.cc, www.apps.pikorifi00.korifi.cc
last uploaded:     Sat 25 Jan 20:55:48 CST 2025
stack:
docker image:      dashaun/cc.pikorifi.www:latest

type:           web
sidecars:
instances:      1/1
memory usage:   1024M
     state     since                  cpu    memory     disk       logging        cpu entitlement   details
#0   running   2025-01-26T02:56:07Z   0.0%   0B of 0B   0B of 0B   0B/s of 0B/s

Check it out for yourself!

https://www.pikorifi.cc/

Conclusion Link to heading

The kpack build was giving me issues on this single-node install. I didn’t investigate further.

Doing cf push with an OCI image is orders of magnitude more enjoyable than dealing with yaml.

This is a $50 USD device, running www.pikorifi.cc with a Vaadin Spring Boot UI.

I’m really excited to see how far I can push things now. I want to see how many apps/domains I can host on a cluster of Raspberry Pi or even a single Raspberry Pi, with Cloud Foundry Korifi!

As always, your feedback is welcomed.
